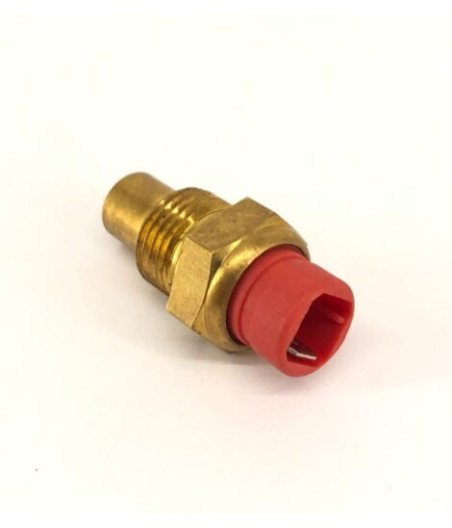

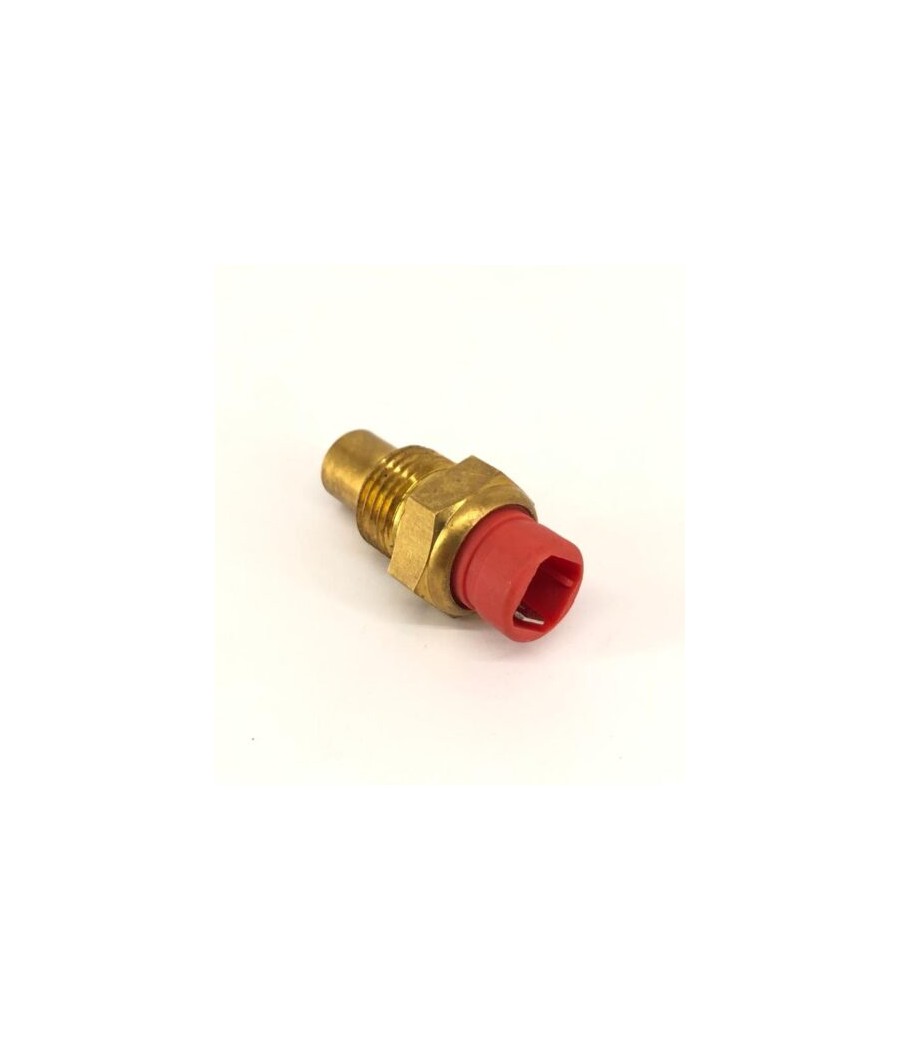

Trasmettitore a termistore per temperatura acqua M16X1,5 - 22 chiave.

Temperatura max di funzionamento 150°C.

Coppia di serraggio max 20NM

Per Trattore Fiat, Ford, New Holland, Case:

FIAT :

Series 00: 1000- 1000 DT- 1000S- 1300- 1300 DT- 500- 500 DT- 600- 600 DT

Series 40: 540- 540 DT- 640- 640 DT

Series 50: 450- 450 DT- 550- 650- 650 DT- 750- 750 DT- 850- 850 DT

Series 66: 45/66- 45/66 DT- 466- 466 DT- 50/66- 50/66 DT- 50/66S- 55/66- 55/66 DT- 56/66S- 566- 566 DT- 60/66- 60/66 DT- 65/66

65/66 DT- 666- 666 DT- 70/66- 70/66 DT- 80/66- 80/66 DT

Series 76: 45/76- 55/76

Series 80: 1180- 1180 DT- 1280- 1280 DT- 1380- 1380 DT- 1580- 1580 DT- 1880- 1880 DT- 480- 480 DT- 580- 580 DT- 680- 680 DT- 780- 780 DT- 880- 880 DT- 880/5- 880/5 DT- 980- 980 DT

Series 86: 50/86- 50/86 DT- 55/86- 55/86 DT- 60/86- 60/86 DT- 62/86- 62/86 DT

Series 88: 65/88- 65/88 DT- 70/88- 70/88 DT- 80/88- 80/88 DT

 Series 90: 100/90- 100/90 DT- 110/90- 110/90 DT- 115/90- 115/90 DT- 130/90- 130/90 DT- 140/90- 140/90 DT- 160/90- 160/90 DT- 180/90- 180/90 DT- 55/90- 55/90 DT- 60/90- 60/90 DT- 65/90- 65/90 DT- 70/90- 70/90 DT- 80/90- 80/90 DT

90/90- 90/90 DT

Series 94: 60/94- 60/94 DT- 65/94- 65/94 DT- 72/94- 72/94 DT- 82/94- 82/94 DT- 88/94- 88/94 DT

Series F: F100- F100 DT- F110- F110 DT- F115- F115 DT- F120- F120 DT- F130- F130 DT- F140- F140 DT

FORD:

Series 3435 - 7635: 3435- 3935- 4135

Series 35: 4635- 4835- 5635- 6635- 7635

NEW HOLLAND:

Series L: L60- L65- L75- L85- L95- Series TD/D: TD55D- TD60D- TD65D- TD70D- TD75D- TD80D- TD85D- TD90D- TD95D- Series TL: TL100- TL70- TL80- TL90

Series TN/ TN/A: TN55- TN60A- TN65- TN70- TN70A- TN75- TN75A- Series TN/D TN/DA: TN55D- TN60DA- TN65D- TN70D- TN70DA- TN75D- TN75DA- TN85DA- TN95DA

Series TNF/TNFA: TN65F- TN70F- TN75F- TN75FA- TN80F- TN85FA- TN90F- TN95F- TN95FA- Series TNN/TNNA: TN65N- TN70NA- TN75N- TN75NA

Series TNS/TNSA: TN55S- TN60SA- TN65S- TN70S- TN70SA- TN75S- TN75SA- Series TN-V / TN-VA: TN55V- TN60VA- TN65V- TN70VA- TN75V- TN75VA

CASE:

Series JX Maxxima: JX55 Maxxima- JX60 Maxxima- JX65 Maxxima- JX70 Maxxima- JX75 Maxxima- JX80 Maxxima- JX85 Maxxima- JX90 Maxxima- JX95 Maxxima

Series JXC Maxxima: JX1060C Maxxima- JX1070C Maxxima- JX1075C Maxxima- Series JXN Maxxima: JX1070N Maxxima- JX1075N Maxxima- JX1095N Maxxima

Series JXU Maxxima:JX100U Maxxima- JX70U Maxxima- JX80U Maxxima- JX90U Maxxima- Series JXV Maxxima: JX1060V Maxxima- JX1070V Maxxima- JX1075V Maxxima- JX1095V Maxxima

RIFERIMENTO ORIGINALE:  P267117000000- 06350499- 87694766- 4171667
